SERIES A VINCENT PARTS

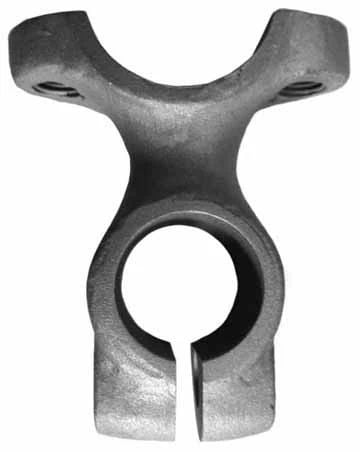

F11 - BRAMPTON Series A Handlebar Riser, 1" Only available with FT210SA Head Clip. 2 each F11 and 2 each FF31A are used on a Series A Fork Head Clip. For 1" handlebars.One motorcycle set remaining - $210. 4 each chrome plated cap screws are $60 extra.Heat Treated 4140 to Rockwell 40C. My old part number FF31AS.
FF31A - BRAMPTON Series A Handlebar Riser Cap, 1" - $30 each2 used on Series A Fork Head Clip Riser. For 1" handlebars.Heat Treated 4140 to Rockwell 40C.
FT188A - BRAMPTON "A" Side Damper Wing Nut - $305/16" x 26 CEI threaded hole. 2.7" overall length.Heat Treated 4140 to Rockwell 40C.
FT210SA - HEAD CLIP, Series A Brampton Forks - $315 separately, $585 complete with Riser Set.Available separately or with 2 each F11 Risers, 2 each FF31A Riser Caps, and 4 each FT227C Cap Screws, chrome. For 1" handlebars. 1 drilled grease fitting boss. Fitted hard bronze bushings.4140 chromoly steel, heat treated to Rockwell 40C. NOT sand-cast mild steel.
R50-194X - Series "A" TWIN Kickstarter with Footpiece, cadmium plated. $180.PR50-194X - Series "A" TWIN Kickstarter with Footpiece, chrome plated. $240.Suitable for "A" Singles and some other pre-WW2 bikes with Burman gear boxes.Limited production. Heat Treated 4140 to Rockwell 40C.
VINCENT SERIES "A" PARTS COMMON to SERIES "B"

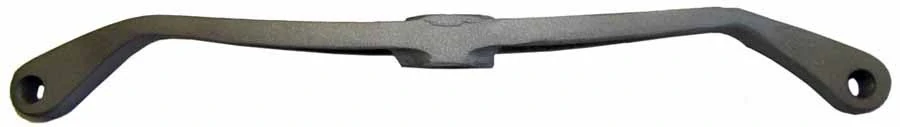

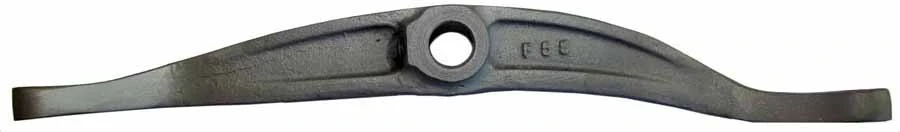

F55B - Balance Beam, Series "B" - $80 Brampton Twins and Singles.

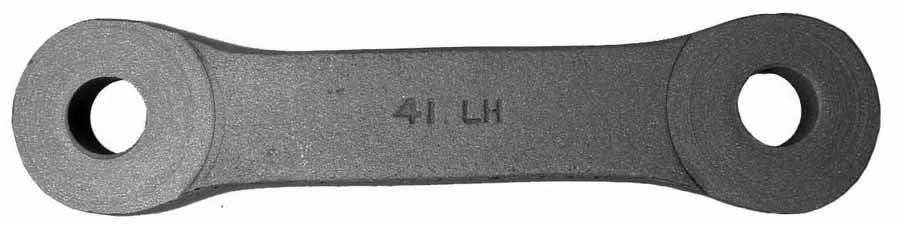

FT213L - BRAMPTON UPPER LEFT LINK- $55 3 3/8", 7/16" CEI LH thread. Heat treated 4140 chromoly steel to Rockwell 40C.
FT213R - BRAMPTON UPPER RIGHT LINK- $55 3 3/8", 7/16" CEI RH thread. Heat treated 4140 chromoly steel to Rockwell 40C.
FT220L Friction Plate, Left Hand - series B- $35Brampton Twins and Singles. Polished and Chromed. Photo isn't very good but the parts are nicely plated.
FT220R Friction Plate, Right Hand - series B- $35Brampton Twins and Singles. Polished and Chromed. Photo isn't very good but the parts are nicely plated.
FT227C (series A # F11B)- BRAMPTON HANDLE BAR CAP SCREWS- $15 ea. Chrome plated steel 5/16" CEI. Heat Treated 4140 chromoly steel to Rockwell 40C.

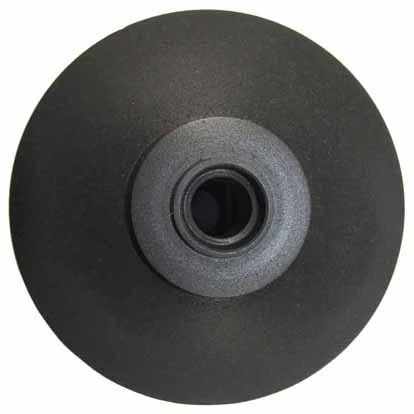

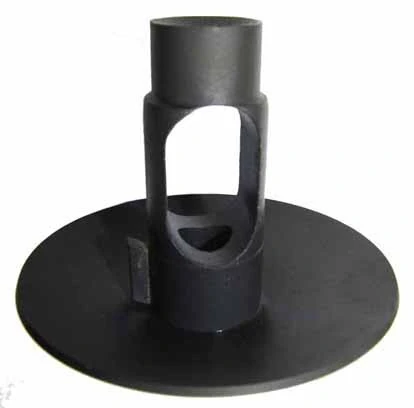

FT232AS - BRAMPTON STEERING DAMPER FOOT - $85All steel construction. Heat treated 2 3/8" cone shaped washer (which rotates freely).Another one of those parts that are not available from any source we could find. Oh, and these fit.
FT233 Damper Spring Blade - series B - $20Brampton Twins and Singles. These are Parkerized steel, OEM parts were painted black.
FT240 - STEERING DAMPER ROD - series B - $20FT241 - STEERING DAMPER LOCKNUT - series B - $20Rods are 10+ inches long, Parkerized 4140 steel.Nuts are chromed steel.Brampton Twins and Singles.
