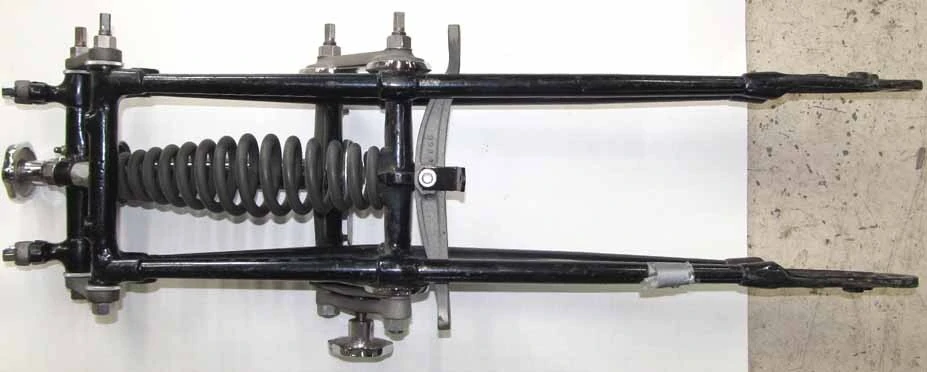

Complete Brampton Forks, original - $4795, same price as my forks.I had to replace the riser caps, fork links, and F55 with my chromoly steel parts. The supplied reproduction parts were poor.The 4 swaged fork tubes were replaced by Ray Danials of the UK. Fork is straight. Choice of chromed steel knobs or polished aluminum.
.jpg "image title")

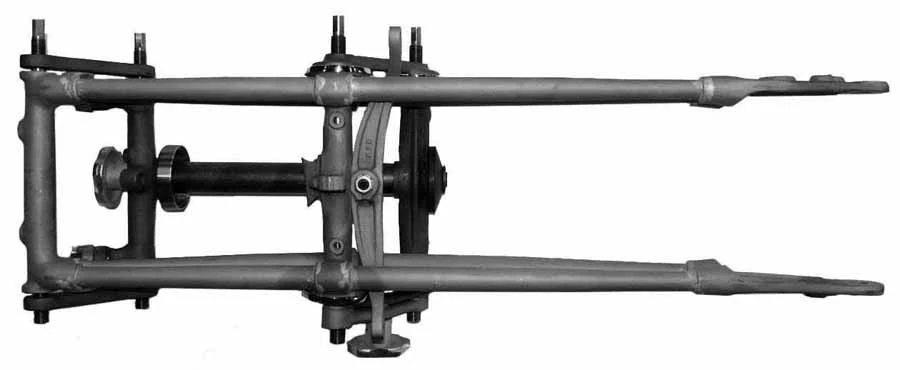

#1. Complete Fork Assembly, front view. $4795
.jpg "image title")
#2. Complete Fork Assembly, rear view. $4795
.jpg "image title")

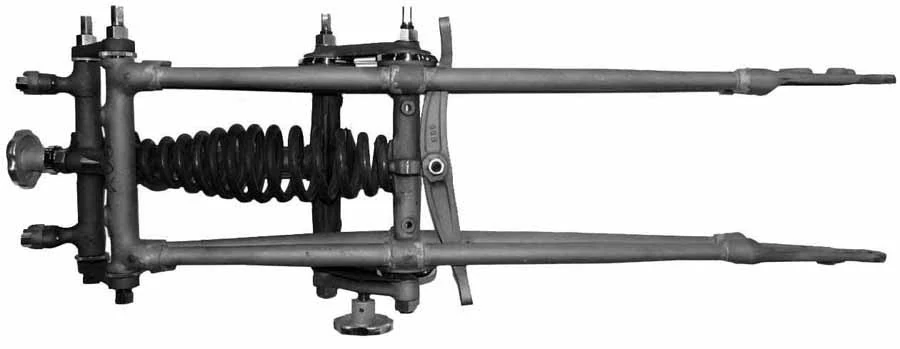

#3. Fork Assembly, with my parts only, front view. $4240
.jpg "image title")

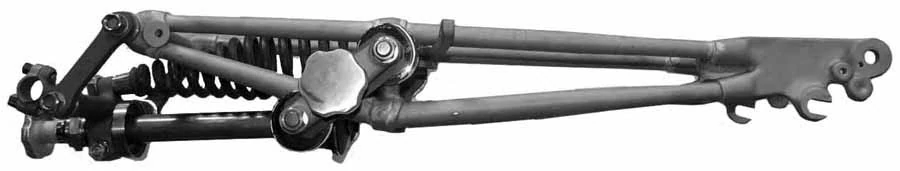

#4. Complete Fork Assembly, right side view. $4795
.jpg "image title")

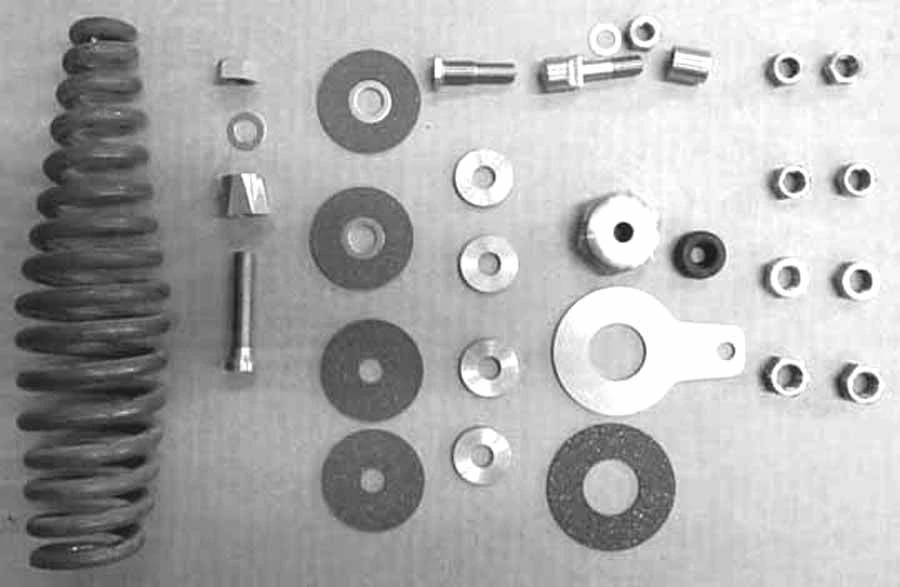

PR30MB- "B" BRAMPTON FORK ASSY.- $4240 with all the parts I make. See photo #3. IN STOCK.PR30MB complete- "B" BRAMPTON FORK ASSY.- $4795 including the "additional parts" I don't make. IN STOCK. Photos 1,2, & 4. Photo 5 shows the "additional parts" made in the UK.I've run a set of these on my "C" Shadow since 2017. The vast majority of the parts I make are on my own bikes. The motorcycles I ride.Heavier wall tubing and stronger 4140 steel castings than OEM or retubed forks. 3 pounds heavier than OEM. Upper and Lower Fork Trees, along with the 4 Fork Links, and the FT227 screws, are heat treated 4140 chromoly to Rockwell 40C.All of the parts I make for the Series "B" Brampton Fork,
see listings below.
.jpg "image title")
.jpg "image title")

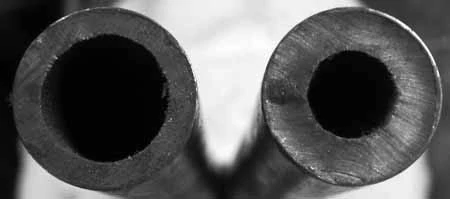

FT208TS BRAMPTON REPLACEMENT FORK TUBES - $200 set of 4 tubesDOM tubing (seamless). Slightly longer than OEM. Original tubes are often heavily rusted on the inside.Front tubes, end shown on the left, have a 3/32" wall thickness, thicker on the ends. They are 3/4" swaged to 5/8". Original front tubes have a 1/16" wall thickness.Rear tubes, end shown on the right, are bent to shape and have a 1/8" wall thickness, thicker on the ends . They are 7/8" swaged to 5/8". Original rear tubes have a 1/16" wall thickness.
.jpg "image title")
B20 type 1- HANDLE BAR CAP- $30 each45 degree countersinks, for 7/8" handlebars. Raised B20 is evident. Bronze casting as per originals. Later "B" version.2 used, Twins and Singles.
.jpg "image title")
.jpg "image title")

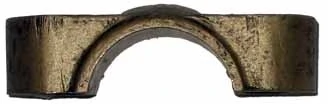

B20 type 2- HANDLE BAR CAP (Girdraulic)-
$30 eachRaised B20 is evident, for 7/8" handlebars.
Bronze casting as per originals.2 used, Twins and Singles.
.jpg "image title")
.jpg "image title")

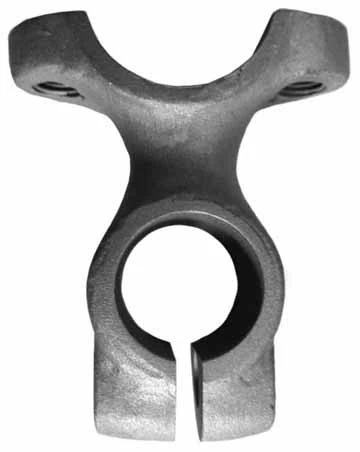

F11 - BRAMPTON Series A Handlebar Riser, 1" Only available with FT210SA Head Clip. 2 each F11 and 2 each FF31A are used on a Series A Fork Head Clip. For 1" handlebars.One motorcycle set remaining - $210. 4 each chrome plated cap screws are $60 extra.Heat Treated 4140 to Rockwell 40C. My old part number FF31AS.
.jpg "image title")
.jpg "image title")
F55C - BALANCE BEAM- $80 Raised F55 and the original surface texture. Girdraulic Twins and Singles.
.jpg "image title")
.jpg "image title")

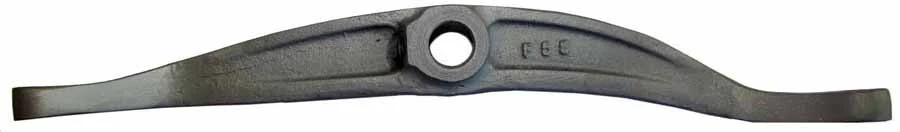

F55B - Balance Beam, Series "B" - $80 Raised F55 and the original surface texture Brampton Twins and Singles.
.jpg "image title")
.jpg "image title")

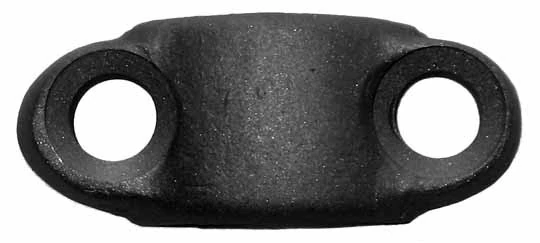

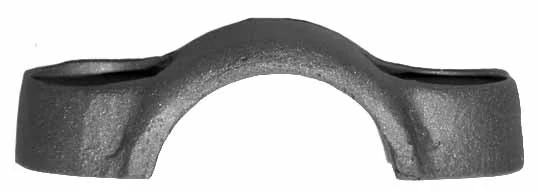

FF31 type 1 - HANDLE BAR CAP- $30 each Early series B. 45 degree countersink, for 7/8" handlebars. Surface texture as per originals. Cast 4140 chromoly steel. 2 used, Twins and Singles.
.jpg "image title")
.jpg "image title")

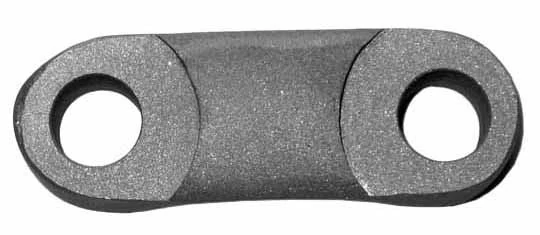

FF31 type 2 - HANDLE BAR CAP- $30 eachLater C's, for 7/8" handlebars. Surface texture as per originals. Cast 4140 chromoly steel.2 used, Twins and Singles.
.jpg "image title")

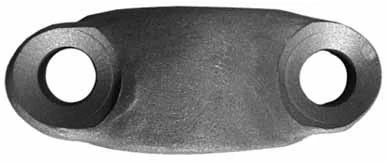

FF31A - BRAMPTON Series A Handlebar Riser Cap, 1" - $30 each2 used on Series A Fork Head Clip Riser. For 1" handlebars.Heat Treated 4140 to Rockwell 40C.
.jpg "image title")

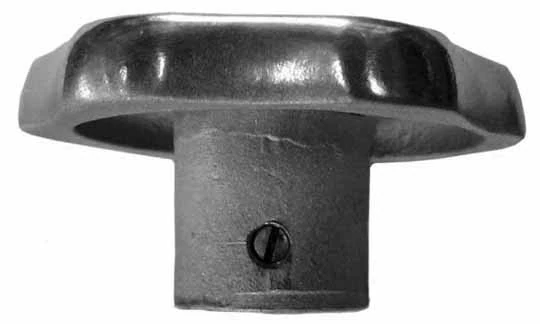

FT188 - BRAMPTON Series B FORK DAMPER KNOB- $50. modestly polished.Aluminum, 3/8" x 26 CEI, 2 1/4" OD. With set screw.Aluminum Knobs were used after the pre-war Bakelite Knob stocks were depleted.
.jpg "image title")
FT188A - BRAMPTON A Side Damper
Wing Nut - $305/16" x 26 CEI threaded hole.
2.7" overall length.Heat treated 4140 chromoly steel to
Rockwell 40C.
.jpg "image title")

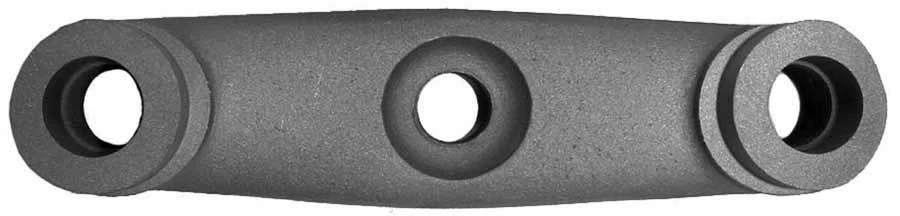

FT200 - BRAMPTON BOTTOM RIGHT LINK- $751/2" CEI RH thread.Heat treated 4140 chromoly steel to
Rockwell 40C.
.jpg "image title")
FT206 - BRAMPTON BOTTOM LEFT LINK- $701/2" CEI LH thread.Heat treated 4140 chromoly steel to Rockwell 40C.
.jpg "image title")

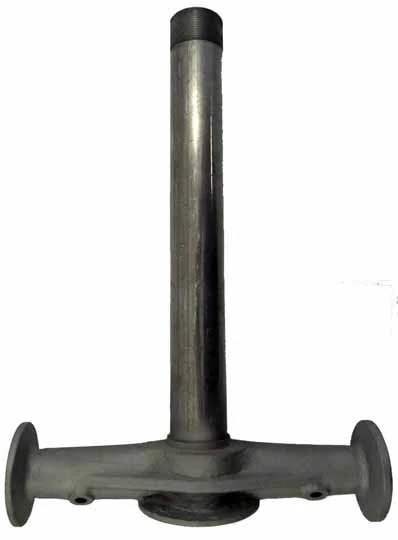

FT207S - BRAMPTON FORK STEERING COLUMN ASSY. - $400.These are 150 grams heavier than originals. 2 drilled grease fitting bosses.
Fitted bronze bushings.Heat treated, Lost Wax, 4140 Chromoly steel casting with a DOM tubing stem.
.jpg "image title")

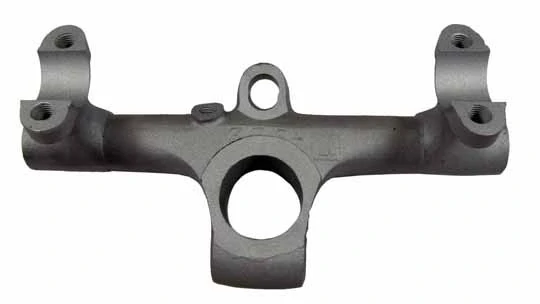

FT210S - BRAMPTON Series B FORK HEAD CLIP ASSY.- $350.Use with 7/8" handlebars.1 drilled grease fitting boss.
Fitted hard bronze bushings.Heat Treated 4140 Chromoly Steel to Rockwell 40C.
Not sand-cast mild steel.
.jpg "image title")
.jpg "image title")

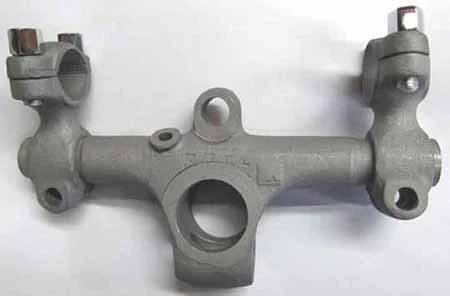

FT210SA - HEAD CLIP, Series A Brampton Forks - $315 separately, $585 complete with Riser Set.One Riser Set left - $270, 2 Risers, 2 Caps, 4 Cap ScrewsAvailable separately or with 2 each F11 Risers, 2 each FF31A Riser Caps, and 4 each FT227C Cap Screws, chrome. For 1" handlebars. 1 drilled grease fitting boss. Fitted hard bronze bushings.Heat Treated 4140 Chromoly Steel to Rockwell 40C. Not sand cast mild steel.
.jpg "image title")
.jpg "image title")

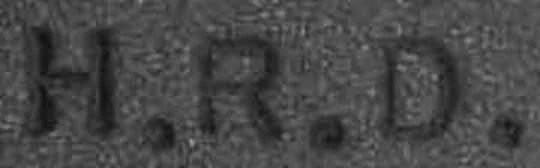

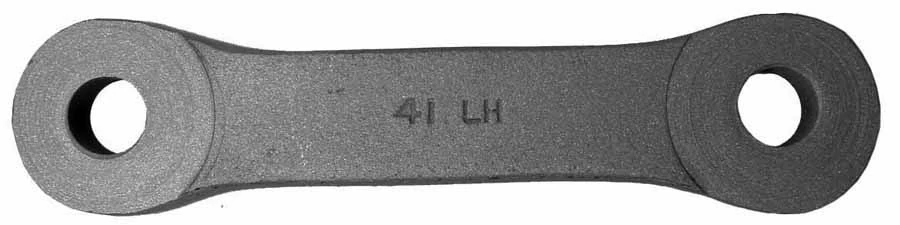

FT213L - BRAMPTON TOP LEFT LINK- $553 3/8", 7/16" CEI LH thread.Heat treated 4140 chromoly steel to Rockwell 40C.
.jpg "image title")
.jpg "image title")

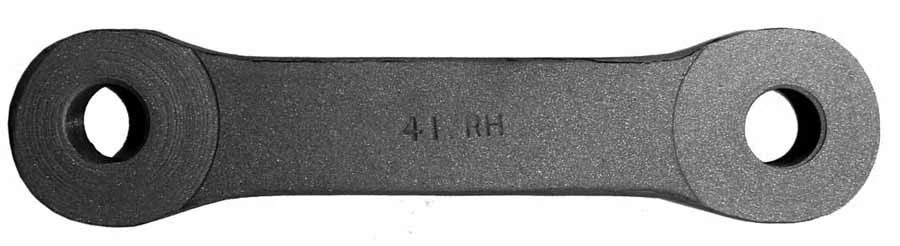

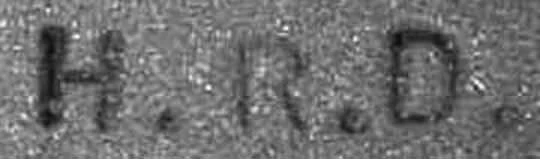

FT213R - BRAMPTON TOP RIGHT LINK- $553 3/8", 7/16" CEI RH thread.Heat treated 4140 chromoly steel to Rockwell 40C.
.jpg "image title")
.jpg "image title")
FT220L Friction Plate, Left Hand - chrome - $35Brampton Twins and Singles. Polished and chromed as per originals. Photo isn't very good, but the parts are nicely plated.
.jpg "image title")
.jpg "image title")

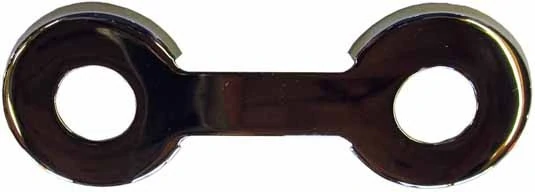

FT220R Friction Plate, Right Hand - chrome - $35Brampton Twins and Singles. Polished and chromed as per originals. Photo isn't very good, but the parts are nicely plated.
.jpg "image title")
.jpg "image title")
FT225 - BRAMPTON Series B FORK STEERING DAMPER KNOB- $50.Aluminum, 3/8" x 26 CEI, 2 1/4" OD.Aluminum Knobs were used after the pre-war Bakelite Knob stocks were depleted.
.jpg "image title")

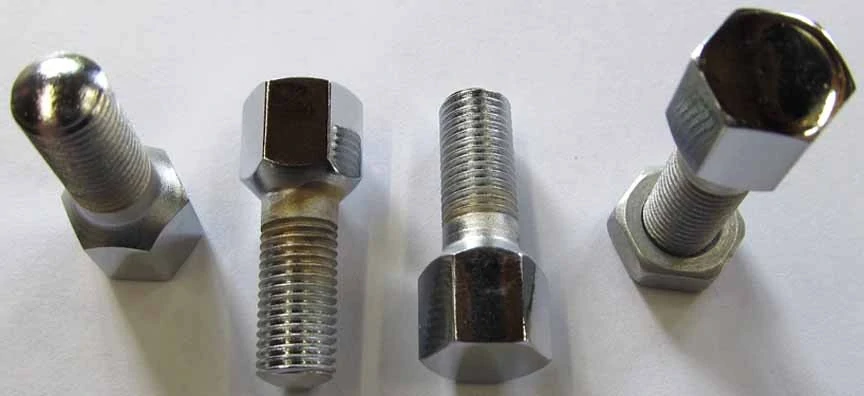

FT227C (series A # F11B)- BRAMPTON HANDLE BAR CAP SCREWS- out of stock
Only with Brampton Fork Sets
chrome plated steel.5/16" CEI. FT227C are Heat Treated 4140 chromoly steel to Rockwell 40C.
.jpg "image title")
FT229 - BRAMPTON TOP RACE CONE SHROUD-
available only with complete fork sets, PR30MB.
.jpg "image title")
.jpg "image title")
FT232 - BRAMPTON STEERING DAMPER NUT ASSY. - $85Another one of those parts that are not actually available from any
source we could find.
.jpg "image title")
.jpg "image title")
FT233 - DAMPER SPRING BLADE - series B - $20Brampton Twins and Singles. These are Parkerized steel, OEM parts were painted black.
.jpg "image title")

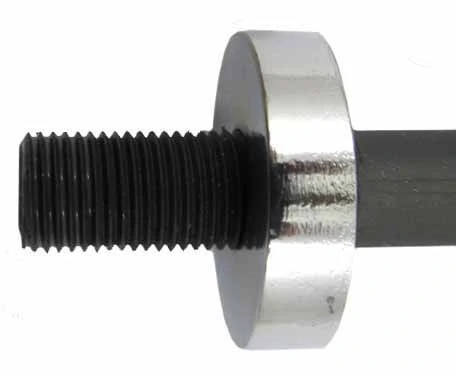

FT240 - STEERING DAMPER ROD - series B - $20FT241 - STEERING DAMPER LOCKNUT - series B - $20Rods are 10+ inches long, Parkerized 4140 steel.Nuts are chromed steel.Brampton fitted Twins and Singles.
